Scope of application: 16px
Melon seeds, peanuts, nuts, almonds, raisins, candies, pistachios, potato chips, shrimp sticks, dumplings, meatballs and other granular, puffed, hardware and other granular, flake, strip, round and irregular Quantitative weighing of materials.
Features:
1. Use high-precision, high-standard special sensors.
2. Intelligent multi-sampling stable mode, more accurate weighing.
3. Intelligent fault alarm prompt, maintenance is more convenient.
4. High-speed asynchronous discharge function, effectively preventing material blocking.
5. Brand new highly integrated modular design, using CAN bus technology.
6. Modbus industry standard communication protocol, realize the combination of combination weigher and packaging machine interface into one.
7. Other features of the same generation model.
Mechanical characteristics and product characteristics:
1. The 1.6L/2.5L hopper is suitable for various common standard materials and has a wide range of applications.
2. The 7-inch touch screen meets the needs of use.

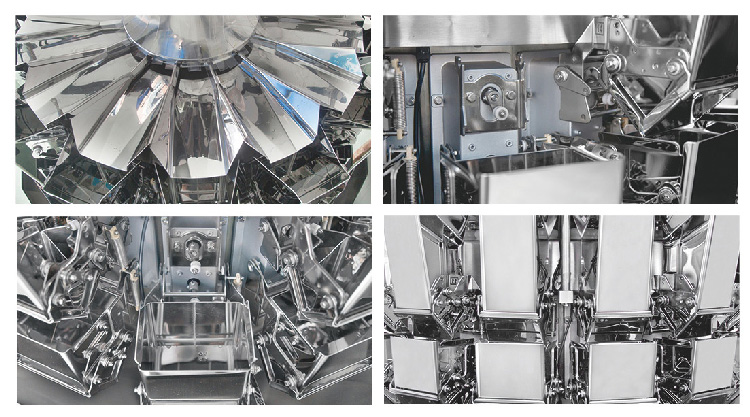

3. The double support of the upper tray is easier to adjust, and the lower hopper is easy to disassemble, which is more convenient for cleaning.
4. The European-style simplified style chassis ensures a stable structure of the whole machine and a more harmonious and beautiful appearance.
5. Uniform design standards and mold making technology are used to make the interchangeability of various parts stronger.
6. The integral chassis and middle seat enhance the strength of the machine and make the stability time of the hopper shorter.
Technical Parameters:
|
Model |
WMC-A10 |
WMC-A14 |
|
Weighing range |
10~1000g |
10~1500g |
|
Hopper capacity |
1.6L |
2.5L |
|
Weighing accuracy range |
X（0.5） |
X（0.5） |
|
Maximum weighing speed |
65P/M |
120P/M |
|
Operation interface |
7 inch touch screen |
|
|
Optional device |
Pattern hopper/collection hopper/data printing device/overweight sorting device |
|
|
Drive method |
Stepper motor |
|
|
Power requirements |
220V / 1500W / 50/60Hz / 8A |
220V / 2000W / 50/60Hz / 10A |
|
Package Size |
1620(L)x1080(W)x1120(H) |
1700(L)x1080(W)x1210(H) |
|
Package weight |
350kg |
450kg |
Why choose us
1. Wan Mingcheng has the best after-sales service 7 * 24 hours to serve you
2. 1500 square meters powerful factory with high quality and competitive price
3. All packaging machines should be packed in export wooden boxes
4. Each packaging machine will be tested before leaving the factory
5. Engineers can serve abroad
6. Training and technical guidance courses should be provided during the installation process
7. If the customer has professional technical engineers, video instructions can also be installed
8. Provide customers with a one-year warranty
